OUTPROOF STEM/FULL PORT TEMPERATURE RANGE:-20 to 150oC PRESSURE PN63/1000WOG APPLICABLE
MEDIA: WATER、 GAS、 OIL
DESIGN GB/T-12224/ANSI 816.34 TH READ· BSPT/BSP/N PT/DI N/J 15/RC/G TEST·GB/T-13927 /APl598
AIR TEST: 0.8MPA

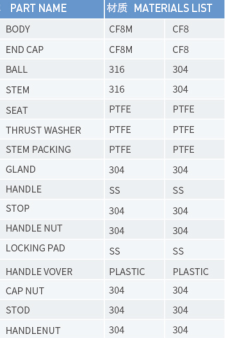

Product Parameters

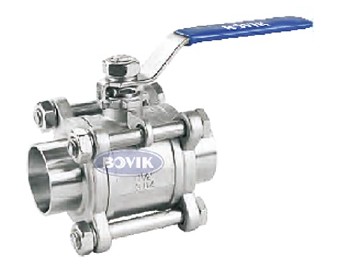

Three Pieces Weld end Ball Valve for Pharmaceutical

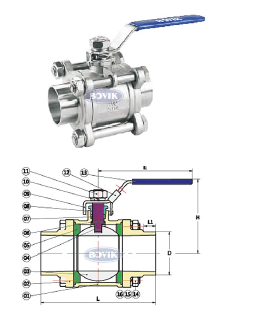

Product Display

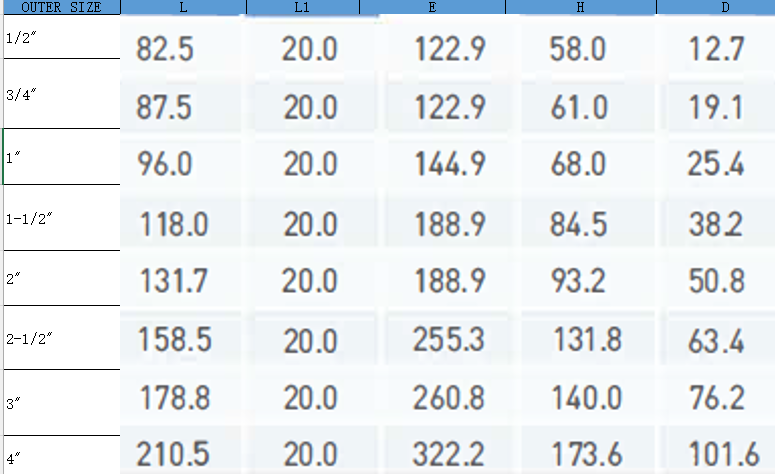

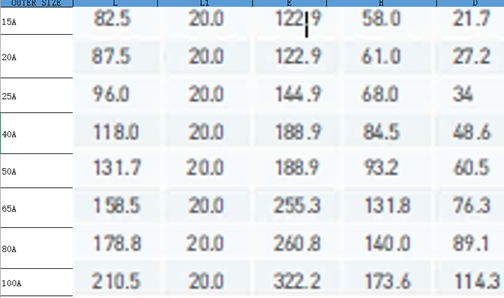

EU Dimension
US Dimension
Intergral design with fewer leakage points,
The thread end can be selected,the construction or the plug in welding port can be selected with the lock handle
Standares:BSPT,DIN2999
PRODCUTION
![Project design]( "Project design")
Project design![CNC Program Process]( "CNC Program Process")
CNC Program Process![Surfurce and Die Treatment]( "Surfurce and Die Treatment")
Surfurce and Die Treatment![finish inspection]( "finish inspection")
finish inspection![Pressure test]( "Pressure test")
Pressure test![Assembly]( "Assembly")
Assembly![packing process]( "packing process")
packing process
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer and trading company. We have specialized in manufacturing fittings and valves for more than 10 years.
Q: Can you OEM?
Yes, we can OEM according to your drawings.
Q: How long is your delivery time?
A: In stock -- 1 to 7 days
No stock -- 7 to 30 days
Depending on the quantity
Q: Do you provide samples ? Is it free or extra?
A: Yes, we could offer the sample. You need to pay for it and the freight cost.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance, balance before shipment.
