modelnumber:JW-200-VMBPJW-100-VMP
power: 220VAC, 50Hz, 500w, heating power supply: 220VAC
Product name: Valve Manifold Panel (VMP)
brand name: GCTEC
Industrial instrument class flow system products
Structure:Fully enclosed expolsion-proof cabinet body
Window:Explosion-proof visual window

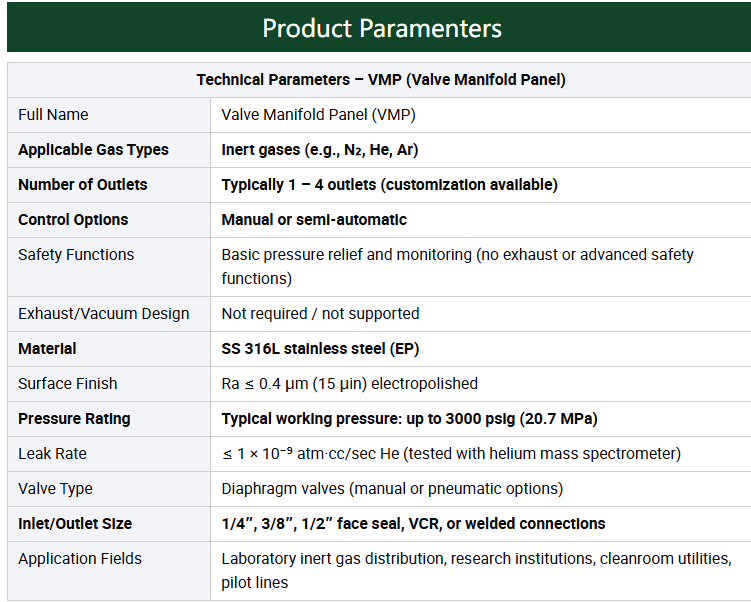

Product Parameters
Applicable Scenarios Q&A:
Q:For such gas distribution systems, apart from stabilizing the distribution Major pipeline pressure, what are the most essential additional key safety function modules that must be integrated into the system design to ensure compliant operation?
A: VMB and systems can support multiple gas-consuming points at the back-end of GC, BSGS, and GR, achieving gas distribution and stabilizing the pressure of each branch.
VMP systems can be engineered for gases like AsH3 and PH3, incorporating independent monitoring, control, and emergency shutdown protocols. It must meet strict safety requirements SEMI ”（如SEMI F6-0301E）。

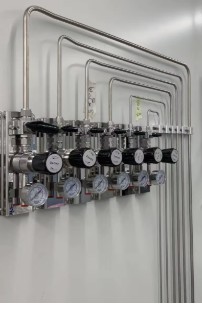

Product Display

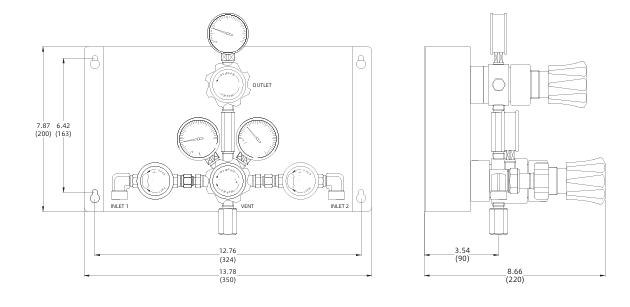

Dimension#1

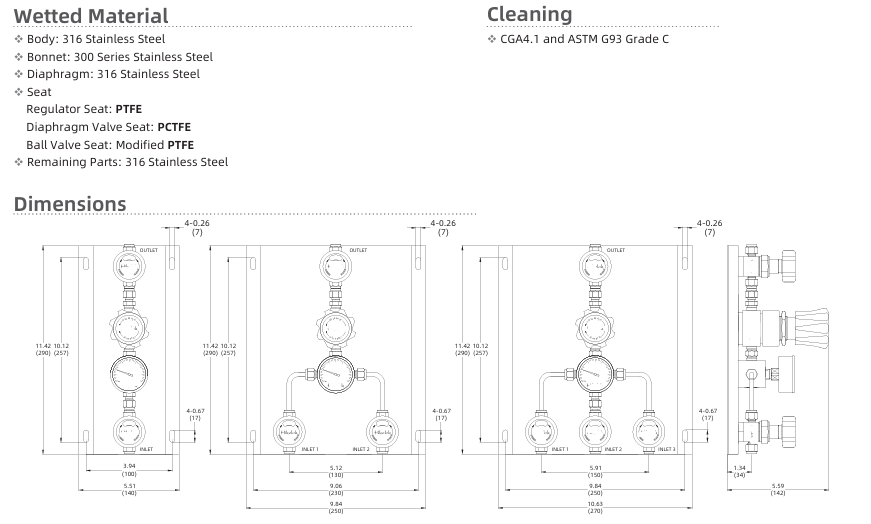

Dimension#2
PRODCUTION
![Project design]( "Project design")
Project design![CNC Program Process]( "CNC Program Process")
CNC Program Process![Surfurce and Die Treatment]( "Surfurce and Die Treatment")
Surfurce and Die Treatment![finish inspection]( "finish inspection")
finish inspection![Pressure test]( "Pressure test")
Pressure test![Assembly]( "Assembly")
Assembly![packing process]( "packing process")
packing process
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer and trading company. We have specialized in manufacturing fittings and valves for more than 10 years.
Q: Can you OEM?
Yes, we can OEM according to your drawings.
Q: How long is your delivery time?
A: In stock -- 1 to 7 days
No stock -- 7 to 30 days
Depending on the quantity
Q: Do you provide samples ? Is it free or extra?
A: Yes, we could offer the sample. You need to pay for it and the freight cost.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance, balance before shipment.
